Overview

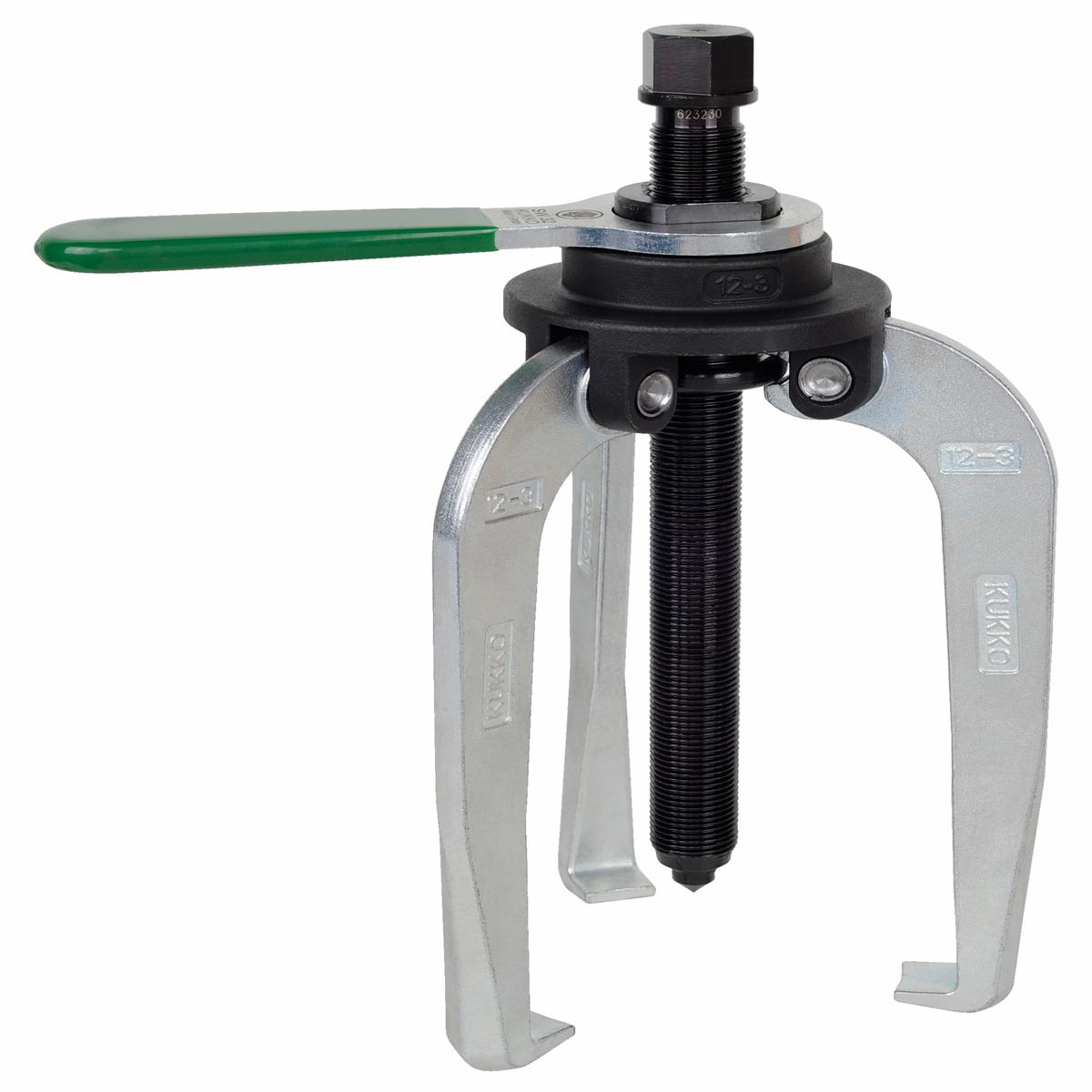

The 3-armed “Alligator” puller with fixed puller legs and anti-slip protection is used to remove particularly tight bearings, gears and discs in all standard sizes for trades, workshops and industry. It can be used to loosen any component that sits on a shaft and is freely accessible from the outside. Tightening the spanner ensures that the puller legs are centred and firmly tightened. This prevents the legs from slipping or moving.

Application

• For pulling off particularly tight bearings, gearwheels and pulleys

Benefits

• The alligator transmission guarantees that the puller legs canonly be opened and closed by operating the adjusting spanner

• The spanner ensures that the puller is held securely in placewithout the legs jumping off or moving out of position

• Self-centring of the legs by tightening the spanner

• Secure positioning of the spindle thanks to the rotatable spindle tip, both on smooth surfaces and when centring (Switch Technology)

• For models from size 12-4 upwards, there is one hook support on the inside and one on the outside, so that the puller can be used for both external removal and internal extraction (it canalso be used as a mobile press)

• Anti-slip guard on the spindle head for safe working with wrench

• Spindle riser protects the threading

Specifications

• Total width: 124mm

• Total depth: 124mm

• Total height: 155mm

• Net weight: 1.24kg

• Width across flats: 17mm

• Span outside pull-off (min): 0mm

• Span outside pull-off (max): 100mm

• Clamping depth outside pull-off: 100mm

• Hook root thickness at the tip (claw thickness): 3mm

• Hook base width (claw width): 14mm

• Hook base depth usable (claw depth usable): 13mm

• Total hook root depth (total claw depth): 25mm

• Total claw thickness (claw distance to base surface): 17mm

• Max torque (Nm): 180Nm

• Material: Tool steel

• Scale division: No

Resources

Overview

The 3-armed “Alligator” puller with fixed puller legs and anti-slip protection is used to remove particularly tight bearings, gears and discs in all standard sizes for trades, workshops and industry. It can be used to loosen any component that sits on a shaft and is freely accessible from the outside. Tightening the spanner ensures that the puller legs are centred and firmly tightened. This prevents the legs from slipping or moving.

Application

• For pulling off particularly tight bearings, gearwheels and pulleys

Benefits

• The alligator transmission guarantees that the puller legs canonly be opened and closed by operating the adjusting spanner

• The spanner ensures that the puller is held securely in placewithout the legs jumping off or moving out of position

• Self-centring of the legs by tightening the spanner

• Secure positioning of the spindle thanks to the rotatable spindle tip, both on smooth surfaces and when centring (Switch Technology)

• For models from size 12-4 upwards, there is one hook support on the inside and one on the outside, so that the puller can be used for both external removal and internal extraction (it canalso be used as a mobile press)

• Anti-slip guard on the spindle head for safe working with wrench

• Spindle riser protects the threading

Specifications

• Total width: 236mm

• Total depth: 236mm

• Total height: 255mm

• Net weight: 3.5kg

• Width across flats: 24mm

• Span outside pull-off (min): 16mm

• Span outside pull-off (max): 200mm

• Clamping depth outside pull-off: 165mm

• Hook root thickness at the tip (claw thickness): 4mm

• Hook base width (claw width): 20mm

• Hook base depth usable (claw depth usable): 17mm

• Total hook root depth (total claw depth): 35mm

• Total claw thickness (claw distance to base surface): 28mm

• Max torque (Nm): 250Nm

• Material: Tool steel

• Scale division: No

Resources

.
